Zahner PP201 Potentiostat

profile_overview_image

PP201

The PP201 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±20A at a volatge range of ±10V. The total power dissipation of the PP201 is 200W.



The PP-Series potentiostats are controlled by an EPC42, a plug-in module for the Electrochemical Workstations IM6 and Zennium. Due to the built-in microprocessor, each EPC42 can address up to four PPSeries potentiostats. Up to four EPC42 cards can be installed in an IM6 or an Zennium. In total, up to 16 PPs can be controlled by one IM6/Zennium. Each potentiostat will hold the control parameters from one access to the next one, so that no potential or current disturbances can occur while scanning the potentiostats. If series measurements are performed with more than one PP-Series potentiostat, spectra are taken from all modules in a definable order.

The PP-Series is embedded completely in the IM6/Zennium environment. Thus, all acquisition and analysis techniques that run on the IM6/Zennium can be applied with the power potentiostats as well. The installation of one or more PP-Series potentiostat will upgrade your IM6/Zennium to an even more versatile, high-current electrochemical workstation.

The PP-Series potentiostats can also be controlled by a Windows®-PC. In this case they provide methods, summarized in the table below. They also work as a LabView® Virtual Instrument under the LabView® software. To implement the PP-Series potentiostats into existing test environment, a supporting DLL is available on demand.

You can control the PP-Series potentiostats in a mixed mode with an IM6/Zennium and a PC in parallel. Both devices can be connected and disconnected during operation.

Supported methods with IM6/Zennium

Software module

Impedance spectroscopy

IM

Simulation & model fitting

SIM

Cyclic voltammetry

CV

Polarisation curves

I/E

Multicell multitasking voltammetry

CV

Arbitrary current/potential/time meas.

PVI

Capacity/potential measurements

C/E

Automatic series measurements

AS

Supported methods with PC

Test Sampling

U vs. time, I vs. time

Current Potential Curves (U/I)

Cyclic Voltammetry, CV at OCP

Charging/Discharging, Battery Cycling

LabView® Virtual Instrument

DLL support available

Photos [ click on the thumbnails below to view large images ]

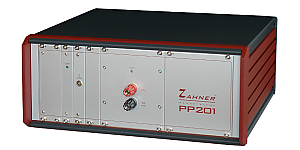

PP201 Power Potentiostat 10 V / 20 A

 PP201



Operating modes

pot/gal/oc

Potential range

±10 V

Potential accuracy

±0.1% / ±1 mV

Current range

0 A … ±20 A

Current accuracy

±0.25 % / ±1 mA

Output power

200 W

Frequency range

10µHz - 200kHz

Impedance range

1µ Ω - 1 kΩ

Ambient temperature

0oC … 30oC

Dimensions

364 x 160 x 376 mm

Weight

10kg

System requirements

IM6/Zennium+EPC42 or PC
