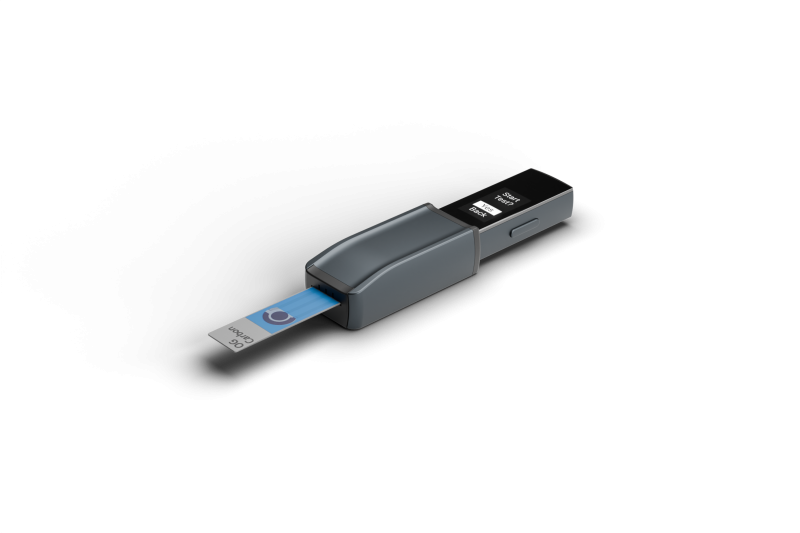

EA200 Mini Potentiostat EA200

Mini hand held, battery powered potentiostat- 3 Pin variant

Overview
Applications
Photos & Videos
Specifications

This world's smallest, handheld, pocket-sized, battery powered and wireless instrument features a small display, internal memory, and Bluetooth connectivity, making it an optimal choice for on-site detection.
Its unique, compact design unlocks new opportunities in the development of affordable diagnostics, sensors, and wearable devices.

+ Chronoamperometry (fast chrono, multi-step chrono)
+ Differential Pulse Voltammetry + Square Wave Voltammetry

Videos

View more related videos on the Screencast Training Videos Wiki

Current ranges: -30 μA to 30 μA (max ±300 μA)

Current resolution: 0.03% (15 nA on 60 μA range)

Power and communication: included charging connector and Bluetooth

Full dc-potential range: -1.5 to +1.5 V

Dimensions: 50 x 16 x 9 mm (excl. connector)

Weight: 11 g

Sensor pitch: 2.54 mm (3-pin), 1.25 mm (4-pin)

Electrode connections: RE, WE1, WE2, CE (3-pin connector masks WE1)

Allowed sensor thickness: between 0.2 mm and 0.3 mm

Maximum sensor width:10.4 mm (3-pin), 6.1 mm (4-pin)
