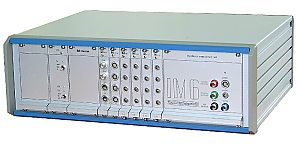

IM6

The IM6 is a modular electrochemical workstation with a frequency range up to 8 MHz at ±3.0 A and a compliance voltage of ±14 V. Eight free extension slots provide huge expansion capability for all fields of application.



High flexibility, high precision and high reliability are the basic elements which make the advanced concept of the IM6 unique!

Equipped with a programmable potentiostat, a pair of high precision amplifiers for current and potential, a flexible frequency generator/analyzer and four slots for additional input and output modules the IM6 is designed for nearly all measurement situations in the electrochemistry lab. Specially designed for spectrum analysis in the electrochemical field, the modular hardware concept of the IM6 allows you to configure the IM6 for applications far beyond impedance spectroscopy. With the appropriate hardware and software modules you can perform nearly all important data acquisition and analysis techniques which are required by electrochemical applications.

The Electrochemical Workstation IM6 has been developed with a background of 15 years of know-how in the field of impedance spectroscopy and electrochemical measurement techniques. It is based on the high end data acquisition system AMOS/ANDI and has therefore access to all its hardware and software modules. Very special, partially patented measurement and analysis techniques guarantee highest accuracy and minimal interference with the test object. The great number of different modes of acquisition and analysis as well as the unique upgrade concept make the IM6 an indispensable universal measurement tool in electrochemical laboratory.

IM6 comes bundled with the outstanding Thales Z 3 software package which offers all standard methods and more at a mouse click. This is why the IM6 can easily be adapted to very different measurement requirements. Furthermore, with the manifold options available, the IM6 is able to grow with its tasks:

  • Compliance Voltage up to ±120 V
  • Output Power up to ±40 A / ±20 V
  • Input Impedance up to 10 TΩ
  • Input Current up to 200 A
  • 16 Additional Channels for True Parallel Impedance Spectra

Photos [ click on the thumbnails below to view large images ]

Electrochemical Workstation IM6 IM6 Potentiostat Detail IM6 from other point of view IM6 connected to KMZ

General

Overall bandwidth

DC - 10 MHz

ADC resolution

18 bit

Harmonic reject

> 60 dB @ ½ full scale

Potentiostat modes

potentiostatic, galvanostatic, pseudo-galvanostatic, rest potential, off

Cell connection

2-, 3- ,4-terminal kelvin

Chassis

ground

Extension slots

9 (incl. 1x EPC42 addon card)

PC interface

USB 2.0

Dimensions

470 x 160 x 376 mm

Weight

13.2 kg

Accessories

EPC42, Thalesbox, U-buffer, 2 cell cable set, USB cable, power cord, manual

Power supply

100/115/230VAC, 50/60Hz

Ambient temperature

+10 °C to +30 °C

Ambient humidity

< 60% without derating



Frequency generator & analyzer

Frequency range

10 µHz to 8 MHz

Accuracy

< 0.0025%

Resolution

0.0025%, 10000 steps/decade



Output potentiostatic

Controlled voltage

±4 V
±10 V

Main
U-buffer

Resolution

125 µV
320 µV

Main
U-buffer

Accuracy

±250 µV
±1 mV

Main
U-buffer

Temperature stability

better 20 µV / °C



Compliance voltage

±14 V
±120 V

Main
CVB120

AC amplitude

1 mV to 1 V



Bandwidth

8 MHz @ 33 Ω load



IR compensation

auto AC impedance technique
range 0 to 10 MΩ
resolution 0.012%



Small signal rise time

100 ns to 200 µs in 5 steps,

automatic selection

Slew rate

15 MV/s



Phase shift

10° @ 250 kHz





Output galvanostatic

Controlled current

±3.0 A



Current range

±100 nA to ±3.0 A in 10 steps
±1 nA to ±0.5 A in 12 steps

Main
HiZ Probe

Resolution min.

0.025%



Accuracy

0.1% @ ≥ 2 µA to 100 mA
1% @ < 2 µA or > 100 mA





Input

Potential ranges

±1, ±2, ±4 V
±4, ±10 V

Main
U-buffer

Potential resolution

256000 steps per range



Offset voltage

< 100 µV



Offset temperature stability

< 20 µV / °C



Current range

±100 nA to ±3.0 A in 30 steps,
automatic range selection
±1 pA to ±0.5 A in 35 steps,
automatic range selection

Main

HiZ Probe

Accuracy

0.05% @ ≥ 2 µA to 100 mA
0.5% @ < 2 µA or > 100 mA



Input bias current

10 pA
12 fA

Main
HiZ Probe

Current resolution

2.5 pA
25 fA

Main
HiZ Probe

Input impedance

1 TΩ || ±5 pF (typical)
1000 TΩ || ±1 pF (typical)

Main
HiZ Probe

Impedance range

1 mΩ to 1 GΩ / 2%
100 mΩ to 10 MΩ / 0.2%
100 mΩ to 100 GΩ / 3%
30 µΩ to 1 GΩ / 2%

Main

HiZ
Gal

Common mode rejection

> 86 dB @ 10 µHz to 100 kHz
> 66 dB @ 100 kHz to 8 MHz



Input channel phase-tracking accuracy

±0.1 ° @ 10 µHz to 100 kHz
±0.25 ° @ 100 kHz to 8 MHz



Equivalent effective input noise

20 µV rms / 2 pA rms @ 1 mHz to 10 Hz
