ERZ102  EIS System

ERZ102 EIS System
ERZ102 EIS System
  • Electrochemical Impedance Spectroscopy (EIS)
  • Includes powerful modeling software

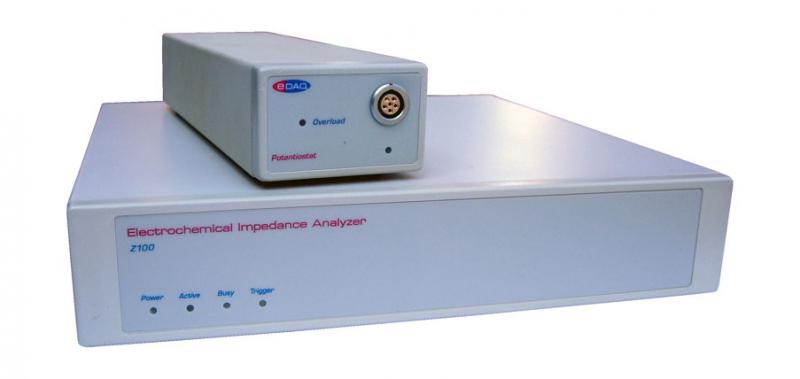

This electrochemical impedance system comprises:

  • ERZ100 Electrochemical Impedance Anaylzer, and
  • EA163 Potentiostat

bundled at an attractive price.

EIS applies a small, non-destructive, AC waveform to a sample and measures the subsequent attenuation and phase shift of the signal. The experiment is repeated over a range of frequencies (typically up to 10 per decade) and the results are modelled as a combination of resistors and capacitors (and other electrical components) which, in turn, can be interpreted as physicochemical phenomena. In particular, a sample that has a layered structure can have the electrical conductivity of the layers determined, and if the dielectric constant(s) of the sample are known then the thickness of the layers can also be determined.

EIS is also often used in the characterisation of surface processes, such as corrosion.

The Z100 is supplied with Z Navigator operating software and the powerful ZMAN modeling software. It comes with a one year warranty.


  • Ultrananocrystalline diamond-CMOS device integration route for high acuity retinal prostheses. A. Ahnood, M.C. Escudie, R. Cicione, C.D. Abeyrathne, K. Ganesan, K.E. Fox, D.J. Garrett, A. Stacey, N.V. Apollo, S.G. Lichter, C.D.L. Thomas, N. Tran, H. Meffin, S. Prawer.  Biomedical Microdevices, 17:50, 2015.  DOI: 10.1007/s10544-015-9952-y
  • A comparative study of graphene–hydrogel hybrid bionanocomposites for biosensing.  S. L. Burrs, D. C. Vanegas, M. Bhargava, N. Mechulan, P. Hendershot, H. Yamaguchi, C. Gomes, and E. S. McLamore.  Analyst, 140, 1466-1476, 2015.  DOI: 10.1039/c4an01788a
  • Performance of conducting polymer electrodes for stimulating neuroprosthetics. R.A. Green, P.B. Matteucci, R.T. Hassarati, B. Giraud, C.W.D. Dodds, S. Chen, P.J. Byrnes-Preston, G.J. Suaning, L.A. Poole-Warren and N.H. Lovell, Journal of Neural Engineering, 10, 016009, 2013.  DOI: 10.1088/1741-2560/10/1/016009
  • Conductive hydrogels with tailored bioactivity for implantable electrode coatings. G.L. Mario Cheong, Khoon S. Lim, Anais Jakubowicz, Penny J. Martens, Laura A. Poole-Warren, Rylie A. Green. Acta Biomaterialia, 10, 1216–1226, 2014. DOI: 10.1016/j.actbio.2013.12.032
  • Carbazole-Dendrimer-Based Donor−π–Acceptor Type Organic Dyes for Dye-Sensitized Solar Cells: Effect of the Size of the Carbazole Dendritic Donor. Pongsathorn Thongkasee, Amonrat Thangthong, Nittaya Janthasing, Taweesak Sudyoadsuk, Supawadee Namuangruk, Tinnagon Keawin, Siriporn Jungsuttiwong, and Vinich Promarak, ACS Applied Materials and Interfaces, 6, 8212–8222, 2014. DOI: 10.1021/am500947k
  • Zinc–Porphyrin Dyes with Different meso-Aryl Substituents for Dye-Sensitized Solar Cells: Experimental and Theoretical Studies. Kanokkorn Sirithip et al. Chemisty An Asian Journal, 2014.  DOI: 10.1002/asia.201402766



Z100 Loopback Test
Z100 Blank Test
ZMAN Basic Overview of ZMAN software
ZMAN1 Open a Data File
ZMAN2 Preview and Edit Data
ZMAN3 Kramers-Kronig Consistency
ZMAN4 Modeling
ZMAN5 Automatic Model Search
ZMAN6 Circular Fitting

View more related videos on the Screencast Training Videos Wiki

  • Frequency Range: 1 mHz to 100 kHz
  • AC amplitude, peak to peak: Adjustable from 1mV to 5V
  • Frequency resolution: 5000 steps/decade
  • Frequency accuracy: < ±200 ppm, 75 ppm typical
  • Range settings (and resolution):
         100 mA   (3.13 µA)          50 mA   (1.56 µA)         20 mA   (625 nA)
         10 mA   (313 nA)             5 mA  (156 nA)             2 mA   (62.5 nA)
         1 mA   (31.3 nA)              500 nA  (15.6 nA)         200 µA   (6.25 nA)
         100 µA   (3.13 nA)           50 µA  (1.56 nA)           20 µA   (625 pA)
         10 µA   (313 pA)              5 µA  (156 pA)              2 µA   (62.5 pA)
         1 µA   (31.3 pA)               500 nA  (15.6 pA)         200 nA   (6.25 pA)
         100 nA   (3.13 pA)           50 nA  (1.56 pA)           20 nA   (625 fA)
  • Input resistance: 1013 ohms
  • Bandwidth: 100 kHz
  • Warranty on ERZ100: 12 months
